10 Port PoE Network Switch 120W With Gigabit Uplink For Reliable Connectivity

Payment Terms : T/T,Western Union

Forwarding Rate : 4.17Mpps

Place of Origin : China

Port Count : 8*10/100M RJ45, 2*10/100/1000M RJ45

Brand Name : ONV

Total Power : 120W

Dimensions : 195*130*40mm

Net Weight : 0.75kg

Delivery Time : 2-8 work days

Switching Capacity : 12Gbps

Input Voltage : AC100-240V

Supply Ability : 500000 pcs/month

PoE Ports : Port 1-8

Packaging Details : Packaging dimensions: 250*205*45mm, weight: 1.0kg, Carton dimensions: 490*440*270mm, 20 pcs/carton, weight: 21kg

Model Number : ONV-H1108PGL

Certification : CE, FCC, RoHS

MOQ : 1

Operation Temperature : -20~+55°C

Max PoE Power : 30W per port

Contact Now

10-port Gigabit Uplink PoE Switch

The ONV-H1108PGL is a 10/100M PoE switch independently developed by ONV. It features 8×10/100M RJ45 ports and 2×10/100/1000M uplink RJ45 ports. Ports 1-8 support PoE+ standard with single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and recognizes standard power-receiving equipment and supplies power through network cables. It can power PoE terminal equipment such as wireless APs, IP cameras, VoIP phones, and video access control intercoms, meeting high-density PoE power supply requirements. Ideal for hotels, campuses, factory quarters, and small-to-medium enterprises. Unmanaged mode enables plug-and-play operation with no configuration required.

Technical Specifications
Model ONV-H1108PGL
Fixed Port 8×10/100Base-TX PoE ports (Data/Power)
2×10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port Ports 1-8 support 10/100Base-T(X)
Ports 9-10 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaptation
Function Switch EXTEND mode (250m): When switched to the 250m position, ports 1-8 support 10M/250 meters transmission.
Note: When switch status changes, the PoE switch must be restarted for the function switch to take effect.
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤250 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 12Gbps (Non-blocking)
Forwarding Rate@64byte 4.17Mpps
MAC 2K
Buffer Memory 2M
LED Indicator Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Function switch: 100m/250m (Green)
PoE Port Port 1-8
Power Supply Pin 1/2(+) 3/6(-)
Max Power Per Port 30W, PoE+
Total PWR/ Input Voltage 120W/ (AC100-240V)
Power Consumption Standby<5W, full load<120W
Power Supply Built-in power supply, AC100~240V 50-60Hz, 2.2A
Operation Temp/ Humidity -20~+55°C, 5%~90% RH non-condensing
Storage Temp/ Humidity -40~+75°C, 5%~95% RH non-condensing
Dimension 195×130×40mm
Net /Gross Weight 0.75kg/ 1.0kg
Installation Desktop, Wall-mounted
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
10 Port PoE Network Switch 120W With Gigabit Uplink For Reliable Connectivity
Product Features
  • 10/100M Access, Gigabit RJ45 Port Uplink
    ◇ Support non-blocking wire-speed forwarding for smoother transmission.
    ◇ Support IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control.
    ◇ Provides 8×10/100Base-TX RJ45 ports and 2×10/100/1000Base-T RJ45 ports for flexible networking.
  • Smart PoE Power Supply
    ◇ Complies with PoE+ standard, automatically identifies PoE devices for power supply, and does not damage non-PoE devices.
    ◇ 8×10/100Base-TX PoE ports meet the needs of security monitoring, teleconferencing systems, wireless coverage, and other scenarios.
  • Innovative Function
    ◇ Long distance mode (250m): When switched to the 250m position, ports 1-8 rate is 10M with transmission distance up to 250 meters.
  • Stable and Reliable, Easy to Use
    ◇ CE, FCC, RoHS certified.
    ◇ Plug and play, no configuration required.
    ◇ User-friendly panel shows device status through LED indicators for PWR, Link, and PoE.
    ◇ Self-developed power supply with high redundancy design provides long-term stable PoE power output.
    ◇ Low power consumption, galvanized steel casing, and excellent heat dissipation ensure stable operation.

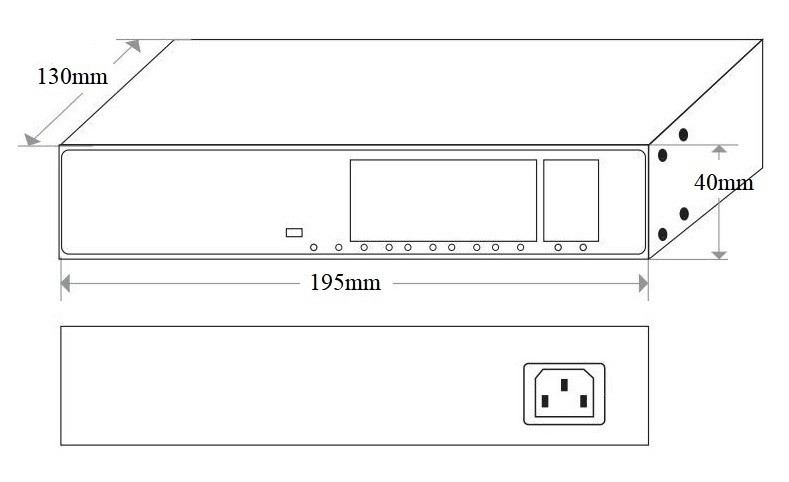

Product Dimension
10 Port PoE Network Switch 120W With Gigabit Uplink For Reliable Connectivity

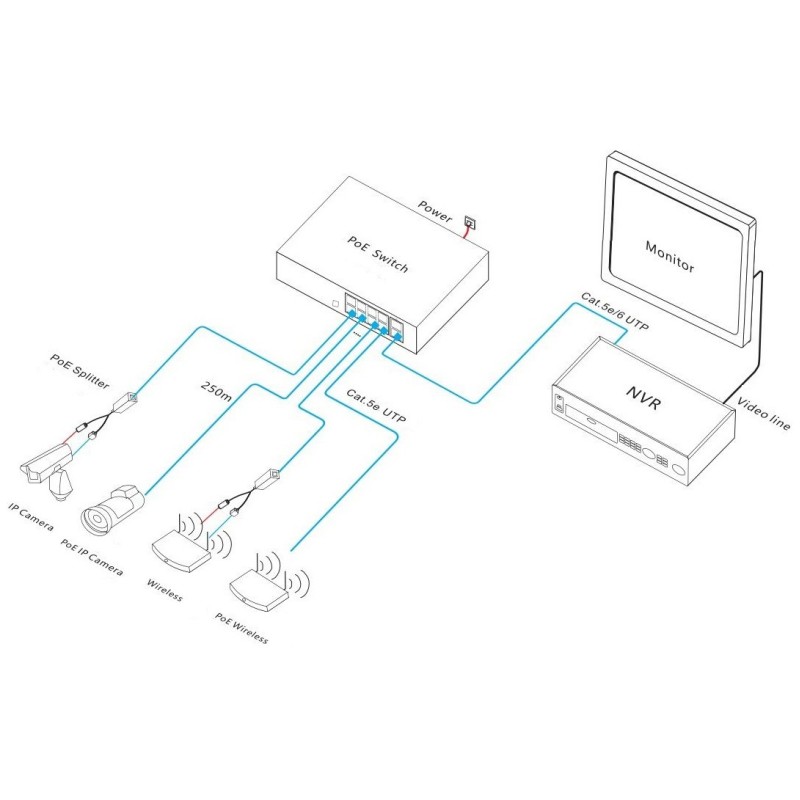

Application Scenarios
10 Port PoE Network Switch 120W With Gigabit Uplink For Reliable Connectivity
Ordering Information
Model Description Built-in Power Supply
ONV-H1108PGL PoE switch with 8×10/100M RJ45 ports and 2×10/100/1000M uplink RJ45 ports. Ports 1-8 support PoE+ standard. When switched to the 250m position, ports 1-8 support 10M/250 meters transmission. 120W
Packing List
Packing List Qty Unit
10-port Gigabit uplink PoE switch 1 Set
AC Power Line 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
