16 Port Gigabit Managed PoE Switch IEEE802.3af IEEE802.3at for Enterprise Networks

Model Number : ONV-POE33168PFM

MOQ : 1

Payment Terms : T/T,Western Union

Switching capacity : 52Gbps

PoE standard : IEEE802.3af/at

Delivery Time : 2-8 work dyas

Input voltage : AC100-240V

Power consumption : Standby<15W, full load<120W

Forwarding rate : 23.81Mpps

Dimensions : 270*181*44.5mm

Brand Name : ONV

Weight : 1.6kg (net)

Operating temperature : -20°C~+55°C

Supply Ability : 500000 pcs/month

Max PoE power : 30W per port

Port count : 16 (8*RJ45, 8*SFP)

Certification : CE, FCC, RoHS

Place of Origin : China

Packaging Details : Packaging dimensions: 311*245*74mm, weight: 2.2kg, Carton dimensions: 480*430*352mm, 10 pcs/carton, weight: 23kg

Contact Now

16-port Gigabit Managed PoE Switch

Overview

The ONV-POE33168PFM is a Gigabit L2+ managed PoE fiber switch independently developed by ONV. It features 8×10/100/1000Base-T adaptive RJ45 ports and 8×100/1000Base-X uplink SFP fiber ports. Ports 1-8 support IEEE802.3af/at PoE standard with single-port PoE power up to 30W.

As a PoE power supply device, it automatically detects and identifies standard power-receiving devices and powers them through network cables. It can power wireless APs, IP cameras, IP phones, building visual access control intercoms, and other PoE terminal devices, making it suitable for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and small-to-medium enterprises to build economical and efficient networks.

The switch offers L2+ network management functions, supports IPv4/IPv6 management, static routing forwarding, comprehensive security protection mechanisms, ACL/QoS strategies, and rich VLAN functions. It supports multiple network redundancy protocols including STP/RSTP/MSTP (<50ms) and ERPS (<20ms) to enhance link backup and network reliability.

Technical Specifications

Parameter	ONV-POE33168PFM	ONV-POE33168PFM-at
Interface Characteristics
Fixed Ports	1×Console RS232, 8×10/100/1000Base-T PoE, 8×100/1000Base-X SFP
PoE Ports	Port 1-8
Max Power Per Port	30W (IEEE802.3af/at)
Total Power/Input Voltage	130W/(AC100-240V)	250W/(AC100-240V)
Power Consumption	Standby <15W, full load <120W	Standby <16W, full load <240W
Physical Parameters
Dimensions (L×W×H)	270×181×44.5mm
Net/Gross Weight	1.6kg/2.2kg	1.8kg/2.4kg
Installation	Desktop, 19-inch 1U cabinet
Certification & Warranty
Certifications	CE, FCC, RoHS
Warranty	3 years, lifelong maintenance

Product Images

16 Port Gigabit Managed PoE Switch IEEE802.3af IEEE802.3at for Enterprise Networks

Key Features

Gigabit Access with Uplink SFP Fiber Ports: Non-blocking wire-speed forwarding, full/half-duplex support, flexible networking capabilities
Smart PoE Power Supply: PoE network management, IEEE 802.3af/at compliance, automatic device identification, priority mechanism for power allocation
Advanced Business Processing: ERPS ring network, STP/RSTP/MSTP support, VLAN flexibility, port aggregation, QoS, ACL, and multicast protocols
Enhanced Security: Port isolation, storm control, IP+MAC+port+VLAN binding, 802.1X authentication
Reliable Operation: CE, FCC, RoHS certifications, self-developed power supply, excellent heat dissipation, LED status indicators
Easy Operation & Management: Comprehensive monitoring tools, multiple encryption methods, diverse management interfaces including Web, CLI, and SNMP

Dimensions

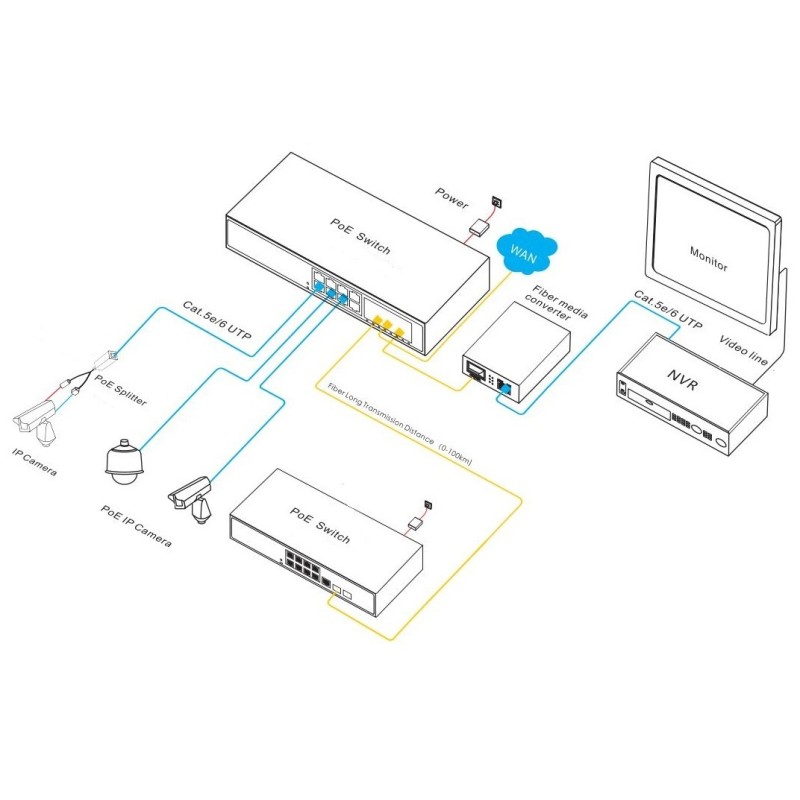

Application Scenario

Ordering Information

Model	Description	Built-in Power Supply
ONV-POE33168PFM	L2+ managed PoE fiber switch with 8×10/100/1000M RJ45 ports and 8×100/1000M uplink SFP fiber ports	130W
ONV-POE33168PFM-at		250W

Note: Optical module is not included and needs to be purchased separately.

Packing List

Item	Quantity	Unit
16-port Gigabit managed PoE switch	1	Set
AC Power Cable	1	PC
RJ45-DB9 Line	1	PC
Mounting Kits	1	Set
User Guide	1	PC
Warranty Card	1	PC
