24-port 10G Uplink Managed Industrial PoE Switch with IEEE802.3af/at PoE Standard

The ONV-IPS36248PFM-8G is a 10G uplink managed industrial PoE switch independently developed by ONV. It features 20×10/100/1000Base-T adaptive RJ45 ports and 4×1/10G uplink SFP+ fiber ports. Ports 1-8 support the IEEE 802.3af/at PoE standard with single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and recognizes standard power-receiving devices and supplies power through network cables to PoE terminal equipment such as wireless APs, IP cameras, VoIP systems, and industrial sensors. Ideal for high-density PoE power supply environments, it is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy, and green energy construction, forming a cost-effective, stable, and reliable communication network.

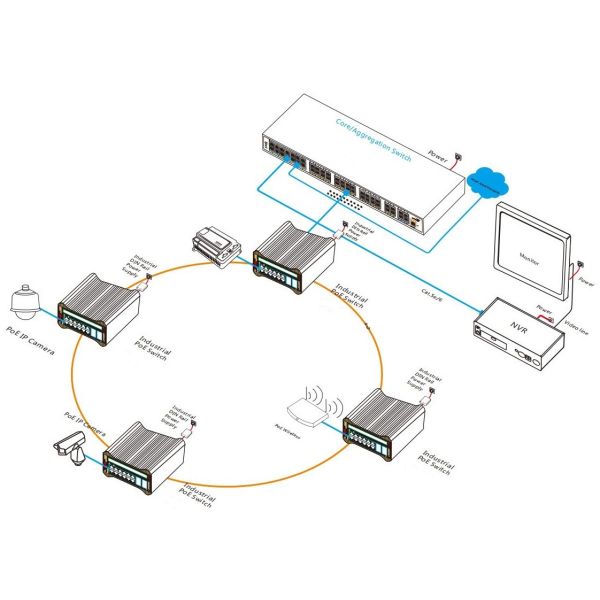

The ONV-IPS36248PFM-8G offers L2+ network management functions, supports IPv4/IPv6 management, static routing with full-line speed forwarding, comprehensive security protection mechanisms, advanced ACL/QoS strategies, and rich VLAN functions for easy management and maintenance. Leading ring network technology, it supports multiple industrial-grade redundant ring network protocols where all ports can form rings. It supports chain, star, double star, ring, tangent ring, intersecting ring, and coupled ring topologies with a ring network recovery time under 20ms. High reliability, security, and manageability ensure reliable transmission of key data. Remote management and integration with the ONV-NMS network management platform enable cluster management for comprehensive network oversight.

Product Image

• Non-blocking wire-speed forwarding
• Full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
• Gigabit RJ45 port and 1/10G uplink SFP+ fiber port combination for flexible networking

• PoE network management for port power allocation, priority setting, status viewing, and time scheduling
• Compliant with IEEE802.3af/at PoE standards, automatically identifies PoE devices without damaging non-PoE equipment.
• 8×10/100/1000Base-T RJ45 ports support PoE power for security monitoring, industrial automation, and wireless coverage

• Port isolation and storm control
• IP+MAC+port+VLAN quadruple flexible combination binding
• 802.1X authentication for LAN computers with controlled port authorization

• Supports ERPS ring network and STP/RSTP/MSTP for layer 2 loop elimination and link backup
• IEEE802.1Q VLAN with flexible VLAN division, Voice VLAN, and QinQ configuration
• Static and dynamic aggregation for increased bandwidth, load balancing, and link reliability
• QoS with port-based, 802.1P-based, and DSCP-based priority modes and four queue scheduling algorithms
• ACL for data packet filtering with matching rule processing and time permissions
• IGMP V1/V2/V3 multicast protocol and IGMP Snooping for multi-terminal video surveillance and conferencing

• CE, FCC, RoHS certifications
• User-friendly panel with LED indicators for PWR, SYS, Link, L/A, and PoE status
• Low power consumption with aluminum alloy housing for excellent heat dissipation

• CPU monitoring, memory monitoring, Ping detection, and cable length detection
• Secure management with HTTPS, SSLV3, SSHV1/V2 encryption
• RMON, system log, and port traffic statistics for network optimization
• LLDP for network management system link status queries
• Multiple management methods: Web, CLI (Console, Telnet), SNMP (V1/V2/V3)

Note: The optical module and power supply are not included and need to be purchased separately.
