10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard 24W Power

Model Number : ONV-PD5202-at

Transmission Bandwidth : 10/100M

Supply Ability : 500000 pcs/month

Conversion Efficiency : ≥82%

Payment Terms : T/T,Western Union

Power Consumption : Standby<1W, full load <24W

Delivery Time : 2-8 work days

Operation Temperature : -20°C~+55°C

Certification : CE, FCC, RoHS

Twisted Pair Transmission : 10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters)

MOQ : 1

Output Voltage : Default 12VDC± 0.5V, optional 5V, 9V, 24VDC output

Dimension : 82*28*23mm, cable length ≤ 250mm

Net Weight : 0.1kg

Brand Name : ONV

Ethernet Port : 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption

Place of Origin : China

Input Voltage : 44-57VDC

Contact Now

10/100M PD PoE Splitter Cable
Product Overview

The ONV-PD5202-at is a 10/100M PD PoE splitter cable independently developed by ONV. It features 1×10/100Base-TX RJ45 port, 1×8P male output port, and 1×DC5521 power port. This solution enables various non-PoE network terminals to connect externally with PoE switches, providing flexible expansion for security monitoring and wireless networks without power line constraints.

The housing is constructed from ABS and PC flame-retardant plastic materials and complies with IEEE802.3af/at standards. Compatible with both End-span (1,2+ 3,6-) and Mid-span (4,5+ 7,8-) power supply methods. Features include 24W output power, low ripple, over 82% efficiency, 2KV port isolation protection, and comprehensive protection against short circuits, overcurrent, and overtemperature. Plug-and-play operation requires no configuration.

Technical Specifications
Model ONV-PD5201 ONV-PD5202 ONV-PD5202-at
Interface Characteristics
Fixed Port 1×8P male output port (Data) 1×DC5521 power port (Power) 1×10/100Base-TX RJ45 port (Data)
Ethernet Port 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Network Characteristics
Transmission Bandwidth 10/100M
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
LED Indicator Working indicator: POE (Yellow)
PoE & Power Supply
PoE Port (PD) PD port IEEE 802.3 af/at @ PoE
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
Power Supply Pin 1/2(+) 3/6 (-) & 4/5 (+)7/8 (-)
Input Voltage 44-57VDC
Output Voltage Default 12VDC± 0.5V, optional 5V, 9V, 24VDC output
Default DC5521 plug, optional Micro USB power plug
Power Consumption Standby<1W, full load <15W Standby<1W, full load <13W Standby<1W, full load <24W
Conversion Efficiency (Output: Input) ≥82%
Physical Parameter
Operation TEMP/Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage TEMP/Humidity -40°C~+85°C, 5%~95% RH non-condensing
Dimension (L×W×H) 82×28×23mm, cable length ≤ 250mm
Net/Gross Weight 0.05kg /0.07kg 0.06kg /0.08kg 0.1kg /0.12kg
Lightning Protection 4KV 8/20us, Protection level: IP40
Warranty 1 year, lifelong maintenance
Key Features
  • 10/100Mbps Fast Ethernet
  • DC interface features dustproof and waterproof measures.
  • Comprehensive protection against short circuits, overcurrent, and overtemperature
  • Output voltage: 12VDC (Default), customizable 5-24VDC with low ripple
  • Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency
  • Supports IEEE802.3af/at standard, compatible with both mid-span (4/5+, 7/8-) and end-span (1/2+, 3/6-)
  • 1500V high voltage isolation (input stage to output stage) - applicable to ONV-PD5202 and ONV-PD5202-at models
Dimensions

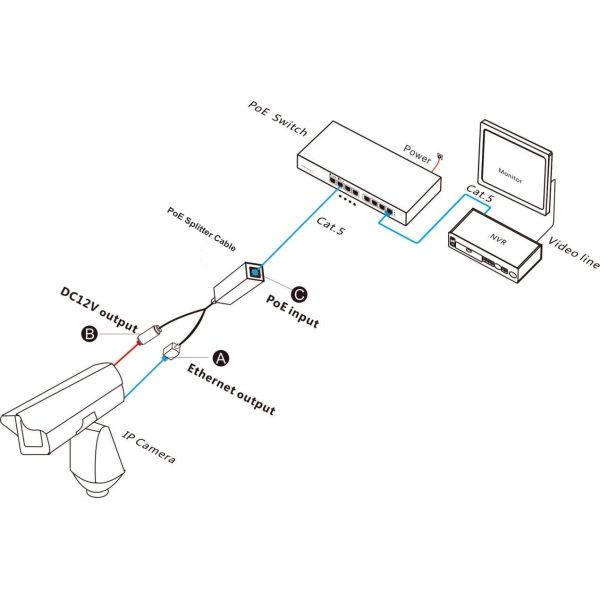

10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard 24W Power
Applications
10/100M Fast Ethernet PD PoE Splitter Cable with IEEE802.3af/at Standard 24W Power
Ordering Information
Model Description
ONV-PD5201 10/100M non-isolated PD PoE splitter cable supporting IEEE 802.3 af/at PoE standard. Input voltage: 44-57VDC. Compatible with 1236 & 4578 dual-mode power supply. Output voltage: 12VDC, maximum full load power 15W.
ONV-PD5202 10/100M isolated PD PoE splitter cable supporting IEEE 802.3 af/at PoE standard. Input voltage: 44-57VDC. Compatible with 1236 & 4578 dual-mode power supply. Output voltage: 12VDC, maximum full load power 13W.
ONV-PD5202-at 10/100M isolated high power PD PoE splitter cable supporting IEEE 802.3 af/at PoE standard. Input voltage: 44-57VDC. Compatible with 1236 & 4578 dual-mode power supply. Output voltage: 12VDC, maximum full load power 24W.
Packing List
Packing List Qty Unit
10/100M PD PoE splitter cable 1 PC
Warranty Card and Certificate of Conformity 1 PC
