Long Range 3 Port 10/100M PoE Extender Plug And Play IEEE 802.3af Compatible

Certification : CE, FCC, RoHS

Ethernet Port : Port 1-3 support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption

Delivery Time : 2-8 work days

Total PWR/ Input Voltage : 25W/(DC48-57V)

Supply Ability : 500000 pcs/month

Max Power Per Port : 25W, IEEE802.3af/at

Packaging Details : Packaging dimensions: 110*56*35mm, weight: 0.2kg

Power Consumption : Standby<2W, full load<30W

Place of Origin : China

Twisted Pair Transmission : 10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters)

Payment Terms : T/T,Western Union

Forwarding Rate : 0.45Mpps@64byte

Operation TEMP/ Humidity : -20~+55°C, 5%~90% RH non-condensing

Dimension : 104*50*29mm

Brand Name : ONV

Model Number : ONV-PSE-PD3121L

Fixed Port : 2*10/100Base-TX PoE ports (Data/Power) 1*10/100Base-TX uplink PD RJ45 port (Data/Power)

MOQ : 1

Switching Capacity : 1.0Gbps(non-blocking)

Contact Now

3-port 10/100M PoE Extender

Overview

The ONV-PSE-PD3121L is a 10/100M PoE extender featuring 2×10/100M PoE ports and 1×10/100M uplink PD RJ45 port. Ports 1-2 support IEEE802.3af/at PoE standards with single-port PoE power up to 25W. The extender operates using power from the PoE switch, eliminating the need for an external power supply. Installed at the end of a 100-meter network cable, it extends both network connectivity and PoE power supply by an additional 100 meters at full speed.

As a PoE power supply device, it automatically detects and powers compatible receiving equipment through the network cable. It is ideal for powering PoE terminal devices such as wireless APs, webcams, VoIP phones, video access control systems, and more. This solution addresses high-density PoE power supply requirements and extends twisted-pair PoE transmission up to 200 meters. Suitable for hotels, campuses, factory dormitories, and small-to-medium enterprises seeking cost-effective networking solutions. Plug-and-play operation requires no configuration.

Technical Specifications

Model

ONV-PSE-PD3121L

Interface Characteristics

Fixed Port	2×10/100Base-TX PoE ports (Data/Power) 1×10/100Base-TX uplink PD RJ45 port (Data/Power)
Ethernet Port	Port 1-3 support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters)
Function Switch	Two working modes: 100m and 250m 100m: Works in standard 100M/100m mode 250m: Works in long-distance 10M/250m mode

Chip Parameter

Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
Forwarding Mode	Store and forward (Full wire speed)
Switching Capacity	1.0Gbps (non-blocking)
Forwarding Rate@64byte	0.45Mpps
MAC	1K
Buffer Memory	512K
Jumbo Frame	1536byte
LED Indicator	Power: PWR (Green), Data: Link (Yellow), POE: PoE (Green)

PoE & Power Supply

PoE Port	Port 2-3, IEEE802.3af/at
Power Supply Pin	1/2 (+) 3/6 (-)
Max Power Per Port	25W, IEEE802.3af/at (Limited by max input power of at)
Total PWR/ Input Voltage	25W/(DC48-57V)
Power Consumption	Standby <2W, full load <30W
Input Voltage and Interface	48-57V PoE (IEEE802.3af/at), RJ45 port connection

Physical Parameter

Operation TEMP/ Humidity	-20~+55°C, 5%~90% RH non-condensing
Storage TEMP/ Humidity	-40~+80°C, 5%~95% RH non-condensing
Dimension	104×50×29mm
Net/Gross Weight	0.15kg/0.2kg
Installation	Desktop, Wall-mounted

Certification & Warranty

Lightning Protection	4KV 8/20us, Protection level: IP30
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty	2 years, lifelong maintenance

Features

10/100M Fast Ethernet, Uplink PD RJ45 Port

Support non-blocking wire-speed forwarding.
Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
3×10/100Base-TX RJ45 ports to meet power supply and transmission requirements within 200 meters

Intelligent PoE Power Supply

IEEE802.3af/at PoE standard, without damaging non-PoE devices
2×10/100Base-TX RJ45 ports support PoE power supply for various security scenarios

Innovative Function

Extends network signal transmission distance and PoE power supply distance
No external power supply required, solving bandwidth and power issues for network cable transmission within 200 meters
Selectable 100M/100m standard transmission and 10M/250m long-distance working modes

Stable and Reliable

CE, FCC, RoHS certified
Plug and play, no configuration required
User-friendly panel with LED indicators for PWR, Link, and PoE status
Low power consumption, fanless, silent design
Advanced ABS and PC flame-retardant plastic shell

Dimension

Long Range 3 Port 10/100M PoE Extender Plug And Play IEEE 802.3af Compatible

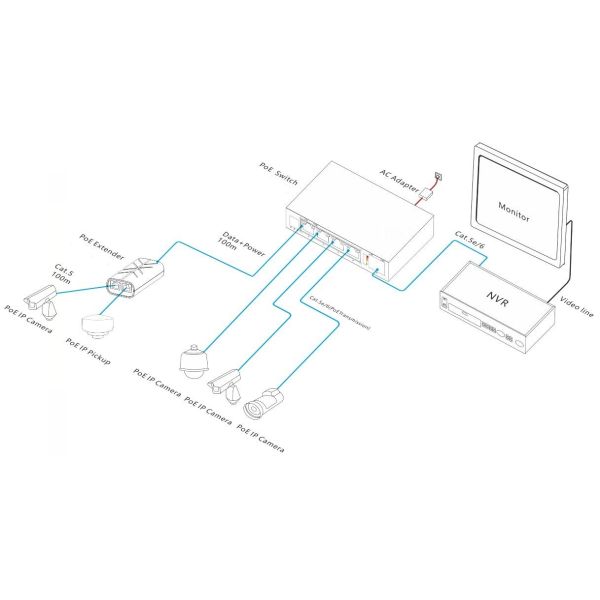

Application

Ordering Information

Model	Description
ONV-PSE-PD3121L	PoE extender with 2×10/100M PoE ports and 1×10/100M uplink PD RJ45 port. Port 1-2 supports the IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell)

Packing List

Packing List	Qty	Unit
3-port 10/100M PoE extender	1	Set
User Guide	1	PC
Warranty Card and Certificate of Conformity	1	PC
